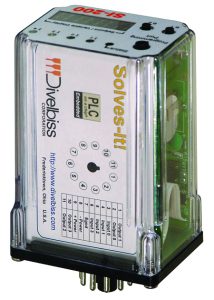

Enclosed Controllers

Built for industry standard type control panels for applications like machine control and automation, Divelbiss enclosed controllers offer the features most needed based on our reliable technology and easy to use programming.

What you gain:

Easy to mount using standard DIN rail and Octal sockets.
Versatile features including display, keypad, HMI options and communications.
Enough I/O to solve common tasks: digital/analog, high-speed counters.
EZ LADDER® programming for quick changes.

2006004_PCS-XXX_Manual-8

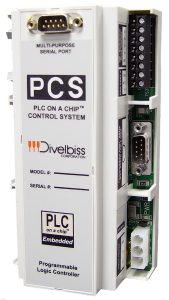

PCS Controllers

Designed for standard panel installation, the PCS series of programmable logic controllers provide easy to use features and versatility. These features include analog I/O capability, expanded communication ability via a CAN network with J1939 support, Synchronous Serial Interface (SSI), truly high speed counting, and broad frequency range Pulse Width Modulation (PWM) outputs.

MODEL	On board Digital Inputs / Outputs	Counter Inputs	Analog Inputs/Outputs	CAN Port(s)	Serial Port(s)	Programmable Display

PCS-100 ▼

Price: $203

10VAC or 10-30VDC Power
Din Rail Mount
Digital I/O using High Density I/O (HDIO) Expanders (128 In / 128 Out Max)

Accessories

Click on a model to download the PDF.

ICM-HDIO-01P: High Density I/O Expander, 16 Isolated DC Inputs, 16 Isolated DC Outputs (10-32VDC)
ICM-HDIO-02P: High Density I/O Expander, 16 Isolated DC InputS (10-32VDC)
ICM-HDIO-03P: High Density I/O Expander, 8 Isolated DC Inputs, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-04P: High Density I/O Expander, 8 Isolated DC InputS (10-32VDC)
ICM-HDIO-05P: High Density I/O Expander, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-06P: High Density I/O Expander, 16 Commoned DC Inputs, 16 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-07P: High Density I/O Expander, 16 Commoned DC Inputs(10-32VDC)
ICM-HDIO-08P: High Density I/O Expander, 8 Commoned DC Inputs, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-09P: High Density I/O Expander, 8 Commoned DC Inputs, (10-32VDC)
ICM-HDIO-10P: High Density I/O Expander, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-11P: High Density I/O Expander, 8 Commoned AC Inputs, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-12P: High Density I/O Expander, 8 Commoned AC Inputs(115VAC)
ICM-HDIO-13P: High Density I/O Expander, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-14P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-15P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC)
ICM-HDIO-16P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-17P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-19P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-20P: High Density I/O Expander, 8 Opto-22 Module Slots
ICM-HDIO-22P: High Density I/O Expander, 8 Commoned AC Inputs (115VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-23P: High Density I/O Expander, 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-24P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-25P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (1 FORM C) (relays not included)
138-106865: USB to RS232 Converter
126-102860: NULL Modem RS232 Communications cable, DB9F to DB9F
PIMS-CA-6: Power cable assembly, 3FT
109-101153: 115VAC Primary, 10VAC Secondary transformer for input power
ICM-HDPS-01: High Density Auxiliary Power Supply
ICM-HDCA-01: I/O Cable set, HDIO Port to 1 High Density I/O Expander (HDIO)
ICM-HDCA-02: I/O Cable set, HDIO Port to 2 High Density I/O Expanders (HDIO)
ICM-HDCA-03: I/O Cable set, HDIO Port to 3 High Density I/O Expanders (HDIO)
ICM-HDCA-04: I/O Cable set, HDIO Port to 4 High Density I/O Expanders (HDIO)
ICM-HDCA-05: I/O Cable set, HDIO Port to 5 High Density I/O Expanders (HDIO)
ICM-HDCA-06: I/O Cable set, HDIO Port to 6 High Density I/O Expanders (HDIO)
ICM-HDCA-07: I/O Cable set, HDIO Port to 7 High Density I/O Expanders (HDIO)

PCS-101 ▼			6/4

Price: $354

10VAC or 10-30VDC Power
Din Rail Mount
Digital I/O using High Density I/O (HDIO) Expanders (128 In / 128 Out Max)
6 Analog Inputs: 0-5VDC, 10 bit
4 Analog Outputs (8 bit) or 2 Analog Outputs (16 bit): 0-5VDC
2 PWM Outputs, Open-Collector, 8 bit

Accessories

Click on a model to download the PDF.

ICM-HDIO-01P: High Density I/O Expander, 16 Isolated DC Inputs, 16 Isolated DC Outputs (10-32VDC)
ICM-HDIO-02P: High Density I/O Expander, 16 Isolated DC InputS (10-32VDC)
ICM-HDIO-03P: High Density I/O Expander, 8 Isolated DC Inputs, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-04P: High Density I/O Expander, 8 Isolated DC InputS (10-32VDC)
ICM-HDIO-05P: High Density I/O Expander, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-06P: High Density I/O Expander, 16 Commoned DC Inputs, 16 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-07P: High Density I/O Expander, 16 Commoned DC Inputs(10-32VDC)
ICM-HDIO-08P: High Density I/O Expander, 8 Commoned DC Inputs, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-09P: High Density I/O Expander, 8 Commoned DC Inputs, (10-32VDC)
ICM-HDIO-10P: High Density I/O Expander, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-11P: High Density I/O Expander, 8 Commoned AC Inputs, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-12P: High Density I/O Expander, 8 Commoned AC Inputs(115VAC)
ICM-HDIO-13P: High Density I/O Expander, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-14P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-15P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC)
ICM-HDIO-16P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-17P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-19P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-20P: High Density I/O Expander, 8 Opto-22 Module Slots
ICM-HDIO-22P: High Density I/O Expander, 8 Commoned AC Inputs (115VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-23P: High Density I/O Expander, 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-24P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-25P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (1 FORM C) (relays not included)
138-106865: USB to RS232 Converter
126-102860: NULL Modem RS232 Communications cable, DB9F to DB9F
PIMS-CA-6: Power cable assembly, 3FT
109-101153: 115VAC Primary, 10VAC Secondary transformer for input power
ICM-HDPS-01: High Density Auxiliary Power Supply
ICM-HDCA-01: I/O Cable set, HDIO Port to 1 High Density I/O Expander (HDIO)
ICM-HDCA-02: I/O Cable set, HDIO Port to 2 High Density I/O Expanders (HDIO)
ICM-HDCA-03: I/O Cable set, HDIO Port to 3 High Density I/O Expanders (HDIO)
ICM-HDCA-04: I/O Cable set, HDIO Port to 4 High Density I/O Expanders (HDIO)
ICM-HDCA-05: I/O Cable set, HDIO Port to 5 High Density I/O Expanders (HDIO)
ICM-HDCA-06: I/O Cable set, HDIO Port to 6 High Density I/O Expanders (HDIO)
ICM-HDCA-07: I/O Cable set, HDIO Port to 7 High Density I/O Expanders (HDIO)
PIMS-CA-PWM: PCS PWM Ribbon Breakout Cable for PWM enabled models

PCS-102 ▼			6/4

Price: $364

10VAC or 10-30VDC Power
Din Rail Mount
Digital I/O using High Density I/O (HDIO) Expanders (128 In / 128 Out Max)
6 Analog Inputs: 0-20mADC, 10 bit
4 Analog Outputs (8 bit) or 2 Analog Outputs (16 bit): 0-20mA
2 PWM Outputs, Open-Collector, 8 bit

Accessories

Click on a model to download the PDF.

ICM-HDIO-01P: High Density I/O Expander, 16 Isolated DC Inputs, 16 Isolated DC Outputs (10-32VDC)
ICM-HDIO-02P: High Density I/O Expander, 16 Isolated DC InputS (10-32VDC)
ICM-HDIO-03P: High Density I/O Expander, 8 Isolated DC Inputs, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-04P: High Density I/O Expander, 8 Isolated DC InputS (10-32VDC)
ICM-HDIO-05P: High Density I/O Expander, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-06P: High Density I/O Expander, 16 Commoned DC Inputs, 16 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-07P: High Density I/O Expander, 16 Commoned DC Inputs(10-32VDC)
ICM-HDIO-08P: High Density I/O Expander, 8 Commoned DC Inputs, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-09P: High Density I/O Expander, 8 Commoned DC Inputs, (10-32VDC)
ICM-HDIO-10P: High Density I/O Expander, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-11P: High Density I/O Expander, 8 Commoned AC Inputs, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-12P: High Density I/O Expander, 8 Commoned AC Inputs(115VAC)
ICM-HDIO-13P: High Density I/O Expander, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-14P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-15P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC)
ICM-HDIO-16P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-17P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-19P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-20P: High Density I/O Expander, 8 Opto-22 Module Slots
ICM-HDIO-22P: High Density I/O Expander, 8 Commoned AC Inputs (115VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-23P: High Density I/O Expander, 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-24P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-25P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (1 FORM C) (relays not included)
138-106865: USB to RS232 Converter
126-102860: NULL Modem RS232 Communications cable, DB9F to DB9F
PIMS-CA-6: Power cable assembly, 3FT
109-101153: 115VAC Primary, 10VAC Secondary transformer for input power
ICM-HDPS-01: High Density Auxiliary Power Supply
ICM-HDCA-01: I/O Cable set, HDIO Port to 1 High Density I/O Expander (HDIO)
ICM-HDCA-02: I/O Cable set, HDIO Port to 2 High Density I/O Expanders (HDIO)
ICM-HDCA-03: I/O Cable set, HDIO Port to 3 High Density I/O Expanders (HDIO)
ICM-HDCA-04: I/O Cable set, HDIO Port to 4 High Density I/O Expanders (HDIO)
ICM-HDCA-05: I/O Cable set, HDIO Port to 5 High Density I/O Expanders (HDIO)
ICM-HDCA-06: I/O Cable set, HDIO Port to 6 High Density I/O Expanders (HDIO)
ICM-HDCA-07: I/O Cable set, HDIO Port to 7 High Density I/O Expanders (HDIO)
PIMS-CA-PWM: PCS PWM Ribbon Breakout Cable for PWM enabled models

PCS-110 ▼					1

Price: $260

10VAC or 10-30VDC Power
Din Rail Mount
Digital I/O using High Density I/O (HDIO) Expanders (128 In / 128 Out Max)
1 – RS232 Port (Modbus Slave)

Accessories

Click on a model to download the PDF.

ICM-HDIO-01P: High Density I/O Expander, 16 Isolated DC Inputs, 16 Isolated DC Outputs (10-32VDC)
ICM-HDIO-02P: High Density I/O Expander, 16 Isolated DC InputS (10-32VDC)
ICM-HDIO-03P: High Density I/O Expander, 8 Isolated DC Inputs, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-04P: High Density I/O Expander, 8 Isolated DC InputS (10-32VDC)
ICM-HDIO-05P: High Density I/O Expander, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-06P: High Density I/O Expander, 16 Commoned DC Inputs, 16 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-07P: High Density I/O Expander, 16 Commoned DC Inputs(10-32VDC)
ICM-HDIO-08P: High Density I/O Expander, 8 Commoned DC Inputs, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-09P: High Density I/O Expander, 8 Commoned DC Inputs, (10-32VDC)
ICM-HDIO-10P: High Density I/O Expander, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-11P: High Density I/O Expander, 8 Commoned AC Inputs, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-12P: High Density I/O Expander, 8 Commoned AC Inputs(115VAC)
ICM-HDIO-13P: High Density I/O Expander, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-14P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-15P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC)
ICM-HDIO-16P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-17P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-19P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-20P: High Density I/O Expander, 8 Opto-22 Module Slots
ICM-HDIO-22P: High Density I/O Expander, 8 Commoned AC Inputs (115VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-23P: High Density I/O Expander, 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-24P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-25P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (1 FORM C) (relays not included)
138-106865: USB to RS232 Converter
126-102860: NULL Modem RS232 Communications cable, DB9F to DB9F
PIMS-CA-6: Power cable assembly, 3FT
109-101153: 115VAC Primary, 10VAC Secondary transformer for input power
ICM-HDPS-01: High Density Auxiliary Power Supply
ICM-HDCA-01: I/O Cable set, HDIO Port to 1 High Density I/O Expander (HDIO)
ICM-HDCA-02: I/O Cable set, HDIO Port to 2 High Density I/O Expanders (HDIO)
ICM-HDCA-03: I/O Cable set, HDIO Port to 3 High Density I/O Expanders (HDIO)
ICM-HDCA-04: I/O Cable set, HDIO Port to 4 High Density I/O Expanders (HDIO)
ICM-HDCA-05: I/O Cable set, HDIO Port to 5 High Density I/O Expanders (HDIO)
ICM-HDCA-06: I/O Cable set, HDIO Port to 6 High Density I/O Expanders (HDIO)
ICM-HDCA-07: I/O Cable set, HDIO Port to 7 High Density I/O Expanders (HDIO)

PCS-111 ▼			6/4		1

Price: $411

10VAC or 10-30VDC Power
Din Rail Mount
Digital I/O using High Density I/O (HDIO) Expanders (128 In / 128 Out Max)
6 Analog Inputs: 0-5VDC, 10 bit
4 Analog Outputs (8 bit) or 2 Analog Outputs (16 bit): 0-5VDC
2 PWM Outputs, Open-Collector, 8 bit
1 – RS232 Port (Modbus Slave)

Accessories

Click on a model to download the PDF.

ICM-HDIO-01P: High Density I/O Expander, 16 Isolated DC Inputs, 16 Isolated DC Outputs (10-32VDC)
ICM-HDIO-02P: High Density I/O Expander, 16 Isolated DC InputS (10-32VDC)
ICM-HDIO-03P: High Density I/O Expander, 8 Isolated DC Inputs, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-04P: High Density I/O Expander, 8 Isolated DC InputS (10-32VDC)
ICM-HDIO-05P: High Density I/O Expander, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-06P: High Density I/O Expander, 16 Commoned DC Inputs, 16 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-07P: High Density I/O Expander, 16 Commoned DC Inputs(10-32VDC)
ICM-HDIO-08P: High Density I/O Expander, 8 Commoned DC Inputs, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-09P: High Density I/O Expander, 8 Commoned DC Inputs, (10-32VDC)
ICM-HDIO-10P: High Density I/O Expander, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-11P: High Density I/O Expander, 8 Commoned AC Inputs, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-12P: High Density I/O Expander, 8 Commoned AC Inputs(115VAC)
ICM-HDIO-13P: High Density I/O Expander, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-14P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-15P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC)
ICM-HDIO-16P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-17P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-19P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-20P: High Density I/O Expander, 8 Opto-22 Module Slots
ICM-HDIO-22P: High Density I/O Expander, 8 Commoned AC Inputs (115VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-23P: High Density I/O Expander, 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-24P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-25P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (1 FORM C) (relays not included)
138-106865: USB to RS232 Converter
126-102860: NULL Modem RS232 Communications cable, DB9F to DB9F
PIMS-CA-6: Power cable assembly, 3FT
109-101153: 115VAC Primary, 10VAC Secondary transformer for input power
ICM-HDPS-01: High Density Auxiliary Power Supply
ICM-HDCA-01: I/O Cable set, HDIO Port to 1 High Density I/O Expander (HDIO)
ICM-HDCA-02: I/O Cable set, HDIO Port to 2 High Density I/O Expanders (HDIO)
ICM-HDCA-03: I/O Cable set, HDIO Port to 3 High Density I/O Expanders (HDIO)
ICM-HDCA-04: I/O Cable set, HDIO Port to 4 High Density I/O Expanders (HDIO)
ICM-HDCA-05: I/O Cable set, HDIO Port to 5 High Density I/O Expanders (HDIO)
ICM-HDCA-06: I/O Cable set, HDIO Port to 6 High Density I/O Expanders (HDIO)
ICM-HDCA-07: I/O Cable set, HDIO Port to 7 High Density I/O Expanders (HDIO)
PIMS-CA-PWM: PCS PWM Ribbon Breakout Cable for PWM enabled models

PCS-112 ▼			6/4		1

Price: $420

10VAC or 10-30VDC Power
Din Rail Mount
Digital I/O using High Density I/O (HDIO) Expanders (128 In / 128 Out Max)
6 Analog Inputs: 0-20mADC, 10 bit
4 Analog Outputs (8 bit) or 2 Analog Outputs (16 bit): 0-20mA
2 PWM Outputs, Open-Collector, 8 bit
1 – RS232 Port (Modbus Slave)

Click on a model to download the PDF.

ICM-HDIO-01P: High Density I/O Expander, 16 Isolated DC Inputs, 16 Isolated DC Outputs (10-32VDC)
ICM-HDIO-02P: High Density I/O Expander, 16 Isolated DC InputS (10-32VDC)
ICM-HDIO-03P: High Density I/O Expander, 8 Isolated DC Inputs, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-04P: High Density I/O Expander, 8 Isolated DC InputS (10-32VDC)
ICM-HDIO-05P: High Density I/O Expander, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-06P: High Density I/O Expander, 16 Commoned DC Inputs, 16 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-07P: High Density I/O Expander, 16 Commoned DC Inputs(10-32VDC)
ICM-HDIO-08P: High Density I/O Expander, 8 Commoned DC Inputs, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-09P: High Density I/O Expander, 8 Commoned DC Inputs, (10-32VDC)
ICM-HDIO-10P: High Density I/O Expander, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-11P: High Density I/O Expander, 8 Commoned AC Inputs, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-12P: High Density I/O Expander, 8 Commoned AC Inputs(115VAC)
ICM-HDIO-13P: High Density I/O Expander, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-14P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-15P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC)
ICM-HDIO-16P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-17P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-19P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-20P: High Density I/O Expander, 8 Opto-22 Module Slots
ICM-HDIO-22P: High Density I/O Expander, 8 Commoned AC Inputs (115VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-23P: High Density I/O Expander, 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-24P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-25P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (1 FORM C) (relays not included)
138-106865: USB to RS232 Converter
126-102860: NULL Modem RS232 Communications cable, DB9F to DB9F
PIMS-CA-6: Power cable assembly, 3FT
109-101153: 115VAC Primary, 10VAC Secondary transformer for input power
ICM-HDPS-01: High Density Auxiliary Power Supply
ICM-HDCA-01: I/O Cable set, HDIO Port to 1 High Density I/O Expander (HDIO)
ICM-HDCA-02: I/O Cable set, HDIO Port to 2 High Density I/O Expanders (HDIO)
ICM-HDCA-03: I/O Cable set, HDIO Port to 3 High Density I/O Expanders (HDIO)
ICM-HDCA-04: I/O Cable set, HDIO Port to 4 High Density I/O Expanders (HDIO)
ICM-HDCA-05: I/O Cable set, HDIO Port to 5 High Density I/O Expanders (HDIO)
ICM-HDCA-06: I/O Cable set, HDIO Port to 6 High Density I/O Expanders (HDIO)
ICM-HDCA-07: I/O Cable set, HDIO Port to 7 High Density I/O Expanders (HDIO)
PIMS-CA-PWM: PCS PWM Ribbon Breakout Cable for PWM enabled models

PCS-120 ▼					1

Price: $265

10VAC or 10-30VDC Power
Din Rail Mount
Digital I/O using High Density I/O (HDIO) Expanders (128 In / 128 Out Max)
1 – RS422 Port (Modbus Slave)

Accessories

Click on a model to download the PDF.

ICM-HDIO-01P: High Density I/O Expander, 16 Isolated DC Inputs, 16 Isolated DC Outputs (10-32VDC)
ICM-HDIO-02P: High Density I/O Expander, 16 Isolated DC InputS (10-32VDC)
ICM-HDIO-03P: High Density I/O Expander, 8 Isolated DC Inputs, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-04P: High Density I/O Expander, 8 Isolated DC InputS (10-32VDC)
ICM-HDIO-05P: High Density I/O Expander, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-06P: High Density I/O Expander, 16 Commoned DC Inputs, 16 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-07P: High Density I/O Expander, 16 Commoned DC Inputs(10-32VDC)
ICM-HDIO-08P: High Density I/O Expander, 8 Commoned DC Inputs, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-09P: High Density I/O Expander, 8 Commoned DC Inputs, (10-32VDC)
ICM-HDIO-10P: High Density I/O Expander, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-11P: High Density I/O Expander, 8 Commoned AC Inputs, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-12P: High Density I/O Expander, 8 Commoned AC Inputs(115VAC)
ICM-HDIO-13P: High Density I/O Expander, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-14P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-15P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC)
ICM-HDIO-16P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-17P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-19P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-20P: High Density I/O Expander, 8 Opto-22 Module Slots
ICM-HDIO-22P: High Density I/O Expander, 8 Commoned AC Inputs (115VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-23P: High Density I/O Expander, 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-24P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-25P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (1 FORM C) (relays not included)
138-106865: USB to RS232 Converter
126-102860: NULL Modem RS232 Communications cable, DB9F to DB9F
PIMS-CA-6: Power cable assembly, 3FT
109-101153: 115VAC Primary, 10VAC Secondary transformer for input power
ICM-HDPS-01: High Density Auxiliary Power Supply
ICM-HDCA-01: I/O Cable set, HDIO Port to 1 High Density I/O Expander (HDIO)
ICM-HDCA-02: I/O Cable set, HDIO Port to 2 High Density I/O Expanders (HDIO)
ICM-HDCA-03: I/O Cable set, HDIO Port to 3 High Density I/O Expanders (HDIO)
ICM-HDCA-04: I/O Cable set, HDIO Port to 4 High Density I/O Expanders (HDIO)
ICM-HDCA-05: I/O Cable set, HDIO Port to 5 High Density I/O Expanders (HDIO)
ICM-HDCA-06: I/O Cable set, HDIO Port to 6 High Density I/O Expanders (HDIO)
ICM-HDCA-07: I/O Cable set, HDIO Port to 7 High Density I/O Expanders (HDIO)

PCS-121 ▼			6/4		1

Price: $416

10VAC or 10-30VDC Power
Din Rail Mount
Digital I/O using High Density I/O (HDIO) Expanders (128 In / 128 Out Max)
6 Analog Inputs: 0-5VDC, 10 bit
4 Analog Outputs (8 bit) or 2 Analog Outputs (16 bit): 0-5VDC
2 PWM Outputs, Open-Collector, 8 bit
1 – RS422 Port (Modbus Slave)

Accessories

Click on a model to download the PDF.

ICM-HDIO-01P: High Density I/O Expander, 16 Isolated DC Inputs, 16 Isolated DC Outputs (10-32VDC)
ICM-HDIO-02P: High Density I/O Expander, 16 Isolated DC InputS (10-32VDC)
ICM-HDIO-03P: High Density I/O Expander, 8 Isolated DC Inputs, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-04P: High Density I/O Expander, 8 Isolated DC InputS (10-32VDC)
ICM-HDIO-05P: High Density I/O Expander, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-06P: High Density I/O Expander, 16 Commoned DC Inputs, 16 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-07P: High Density I/O Expander, 16 Commoned DC Inputs(10-32VDC)
ICM-HDIO-08P: High Density I/O Expander, 8 Commoned DC Inputs, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-09P: High Density I/O Expander, 8 Commoned DC Inputs, (10-32VDC)
ICM-HDIO-10P: High Density I/O Expander, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-11P: High Density I/O Expander, 8 Commoned AC Inputs, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-12P: High Density I/O Expander, 8 Commoned AC Inputs(115VAC)
ICM-HDIO-13P: High Density I/O Expander, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-14P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-15P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC)
ICM-HDIO-16P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-17P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-19P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-20P: High Density I/O Expander, 8 Opto-22 Module Slots
ICM-HDIO-22P: High Density I/O Expander, 8 Commoned AC Inputs (115VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-23P: High Density I/O Expander, 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-24P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-25P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (1 FORM C) (relays not included)
138-106865: USB to RS232 Converter
126-102860: NULL Modem RS232 Communications cable, DB9F to DB9F
PIMS-CA-6: Power cable assembly, 3FT
109-101153: 115VAC Primary, 10VAC Secondary transformer for input power
ICM-HDPS-01: High Density Auxiliary Power Supply
ICM-HDCA-01: I/O Cable set, HDIO Port to 1 High Density I/O Expander (HDIO)
ICM-HDCA-02: I/O Cable set, HDIO Port to 2 High Density I/O Expanders (HDIO)
ICM-HDCA-03: I/O Cable set, HDIO Port to 3 High Density I/O Expanders (HDIO)
ICM-HDCA-04: I/O Cable set, HDIO Port to 4 High Density I/O Expanders (HDIO)
ICM-HDCA-05: I/O Cable set, HDIO Port to 5 High Density I/O Expanders (HDIO)
ICM-HDCA-06: I/O Cable set, HDIO Port to 6 High Density I/O Expanders (HDIO)
ICM-HDCA-07: I/O Cable set, HDIO Port to 7 High Density I/O Expanders (HDIO)
PIMS-CA-PWM: PCS PWM Ribbon Breakout Cable for PWM enabled models

PCS-122 ▼			6/4		1

Price: $426

10VAC or 10-30VDC Power
Din Rail Mount
Digital I/O using High Density I/O (HDIO) Expanders (128 In / 128 Out Max)
6 Analog Inputs: 0-20mADC, 10 bit
4 Analog Outputs (8 bit) or 2 Analog Outputs (16 bit): 0-20mA
2 PWM Outputs, Open-Collector, 8 bit
1 – RS422 Port (Modbus Slave)

Accessories

Click on a model to download the PDF.

ICM-HDIO-01P: High Density I/O Expander, 16 Isolated DC Inputs, 16 Isolated DC Outputs (10-32VDC)
ICM-HDIO-02P: High Density I/O Expander, 16 Isolated DC InputS (10-32VDC)
ICM-HDIO-03P: High Density I/O Expander, 8 Isolated DC Inputs, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-04P: High Density I/O Expander, 8 Isolated DC InputS (10-32VDC)
ICM-HDIO-05P: High Density I/O Expander, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-06P: High Density I/O Expander, 16 Commoned DC Inputs, 16 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-07P: High Density I/O Expander, 16 Commoned DC Inputs(10-32VDC)
ICM-HDIO-08P: High Density I/O Expander, 8 Commoned DC Inputs, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-09P: High Density I/O Expander, 8 Commoned DC Inputs, (10-32VDC)
ICM-HDIO-10P: High Density I/O Expander, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-11P: High Density I/O Expander, 8 Commoned AC Inputs, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-12P: High Density I/O Expander, 8 Commoned AC Inputs(115VAC)
ICM-HDIO-13P: High Density I/O Expander, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-14P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-15P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC)
ICM-HDIO-16P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-17P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-19P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-20P: High Density I/O Expander, 8 Opto-22 Module Slots
ICM-HDIO-22P: High Density I/O Expander, 8 Commoned AC Inputs (115VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-23P: High Density I/O Expander, 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-24P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-25P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (1 FORM C) (relays not included)
138-106865: USB to RS232 Converter
126-102860: NULL Modem RS232 Communications cable, DB9F to DB9F
PIMS-CA-6: Power cable assembly, 3FT
109-101153: 115VAC Primary, 10VAC Secondary transformer for input power
ICM-HDPS-01: High Density Auxiliary Power Supply
ICM-HDCA-01: I/O Cable set, HDIO Port to 1 High Density I/O Expander (HDIO)
ICM-HDCA-02: I/O Cable set, HDIO Port to 2 High Density I/O Expanders (HDIO)
ICM-HDCA-03: I/O Cable set, HDIO Port to 3 High Density I/O Expanders (HDIO)
ICM-HDCA-04: I/O Cable set, HDIO Port to 4 High Density I/O Expanders (HDIO)
ICM-HDCA-05: I/O Cable set, HDIO Port to 5 High Density I/O Expanders (HDIO)
ICM-HDCA-06: I/O Cable set, HDIO Port to 6 High Density I/O Expanders (HDIO)
ICM-HDCA-07: I/O Cable set, HDIO Port to 7 High Density I/O Expanders (HDIO)
PIMS-CA-PWM: PCS PWM Ribbon Breakout Cable for PWM enabled models

PCS-130 ▼					1

Price: $260

10VAC or 10-30VDC Power
Din Rail Mount
Digital I/O using High Density I/O (HDIO) Expanders
1 – RS485 Port (Modbus Slave)

Accessories

Click on a model to download the PDF.

ICM-HDIO-01P: High Density I/O Expander, 16 Isolated DC Inputs, 16 Isolated DC Outputs (10-32VDC)
ICM-HDIO-02P: High Density I/O Expander, 16 Isolated DC InputS (10-32VDC)
ICM-HDIO-03P: High Density I/O Expander, 8 Isolated DC Inputs, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-04P: High Density I/O Expander, 8 Isolated DC InputS (10-32VDC)
ICM-HDIO-05P: High Density I/O Expander, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-06P: High Density I/O Expander, 16 Commoned DC Inputs, 16 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-07P: High Density I/O Expander, 16 Commoned DC Inputs(10-32VDC)
ICM-HDIO-08P: High Density I/O Expander, 8 Commoned DC Inputs, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-09P: High Density I/O Expander, 8 Commoned DC Inputs, (10-32VDC)
ICM-HDIO-10P: High Density I/O Expander, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-11P: High Density I/O Expander, 8 Commoned AC Inputs, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-12P: High Density I/O Expander, 8 Commoned AC Inputs(115VAC)
ICM-HDIO-13P: High Density I/O Expander, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-14P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-15P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC)
ICM-HDIO-16P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-17P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-19P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-20P: High Density I/O Expander, 8 Opto-22 Module Slots
ICM-HDIO-22P: High Density I/O Expander, 8 Commoned AC Inputs (115VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-23P: High Density I/O Expander, 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-24P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-25P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (1 FORM C) (relays not included)
138-106865: USB to RS232 Converter
126-102860: NULL Modem RS232 Communications cable, DB9F to DB9F
PIMS-CA-6: Power cable assembly, 3FT
109-101153: 115VAC Primary, 10VAC Secondary transformer for input power
ICM-HDPS-01: High Density Auxiliary Power Supply
ICM-HDCA-01: I/O Cable set, HDIO Port to 1 High Density I/O Expander (HDIO)
ICM-HDCA-02: I/O Cable set, HDIO Port to 2 High Density I/O Expanders (HDIO)
ICM-HDCA-03: I/O Cable set, HDIO Port to 3 High Density I/O Expanders (HDIO)
ICM-HDCA-04: I/O Cable set, HDIO Port to 4 High Density I/O Expanders (HDIO)
ICM-HDCA-05: I/O Cable set, HDIO Port to 5 High Density I/O Expanders (HDIO)
ICM-HDCA-06: I/O Cable set, HDIO Port to 6 High Density I/O Expanders (HDIO)
ICM-HDCA-07: I/O Cable set, HDIO Port to 7 High Density I/O Expanders (HDIO)

PCS-131 ▼			6/4		1

Price: $411

10VAC or 10-30VDC Power
Din Rail Mount
Digital I/O using High Density I/O (HDIO) Expanders (128 In / 128 Out Max)
6 Analog Inputs: 0-5VDC, 10 bit
4 Analog Outputs (8 bit) or 2 Analog Outputs (16 bit): 0-5VDC
2 PWM Outputs, Open-Collector, 8 bit
1 – RS485 Port (Modbus Slave)

Accessories

Click on a model to download the PDF.

ICM-HDIO-01P: High Density I/O Expander, 16 Isolated DC Inputs, 16 Isolated DC Outputs (10-32VDC)
ICM-HDIO-02P: High Density I/O Expander, 16 Isolated DC InputS (10-32VDC)
ICM-HDIO-03P: High Density I/O Expander, 8 Isolated DC Inputs, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-04P: High Density I/O Expander, 8 Isolated DC InputS (10-32VDC)
ICM-HDIO-05P: High Density I/O Expander, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-06P: High Density I/O Expander, 16 Commoned DC Inputs, 16 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-07P: High Density I/O Expander, 16 Commoned DC Inputs(10-32VDC)
ICM-HDIO-08P: High Density I/O Expander, 8 Commoned DC Inputs, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-09P: High Density I/O Expander, 8 Commoned DC Inputs, (10-32VDC)
ICM-HDIO-10P: High Density I/O Expander, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-11P: High Density I/O Expander, 8 Commoned AC Inputs, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-12P: High Density I/O Expander, 8 Commoned AC Inputs(115VAC)
ICM-HDIO-13P: High Density I/O Expander, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-14P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-15P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC)
ICM-HDIO-16P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-17P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-19P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-20P: High Density I/O Expander, 8 Opto-22 Module Slots
ICM-HDIO-22P: High Density I/O Expander, 8 Commoned AC Inputs (115VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-23P: High Density I/O Expander, 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-24P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-25P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (1 FORM C) (relays not included)
138-106865: USB to RS232 Converter
126-102860: NULL Modem RS232 Communications cable, DB9F to DB9F
PIMS-CA-6: Power cable assembly, 3FT
109-101153: 115VAC Primary, 10VAC Secondary transformer for input power
ICM-HDPS-01: High Density Auxiliary Power Supply
ICM-HDCA-01: I/O Cable set, HDIO Port to 1 High Density I/O Expander (HDIO)
ICM-HDCA-02: I/O Cable set, HDIO Port to 2 High Density I/O Expanders (HDIO)
ICM-HDCA-03: I/O Cable set, HDIO Port to 3 High Density I/O Expanders (HDIO)
ICM-HDCA-04: I/O Cable set, HDIO Port to 4 High Density I/O Expanders (HDIO)
ICM-HDCA-05: I/O Cable set, HDIO Port to 5 High Density I/O Expanders (HDIO)
ICM-HDCA-06: I/O Cable set, HDIO Port to 6 High Density I/O Expanders (HDIO)
ICM-HDCA-07: I/O Cable set, HDIO Port to 7 High Density I/O Expanders (HDIO)
PIMS-CA-PWM: PCS PWM Ribbon Breakout Cable for PWM enabled models

PCS-132 ▼			6/4		1

Price: $420

10VAC or 10-30VDC Power
Din Rail Mount
Digital I/O using High Density I/O (HDIO) Expanders
6 Analog Inputs: 0-20mADC, 10 bit
4 Analog Outputs (8 bit) or 2 Analog Outputs (16 bit): 0-20mA
2 PWM Outputs, Open-Collector, 8 bit
1 – RS485 Port (Modbus Slave)

Accessories

Click on a model to download the PDF.

ICM-HDIO-01P: High Density I/O Expander, 16 Isolated DC Inputs, 16 Isolated DC Outputs (10-32VDC)
ICM-HDIO-02P: High Density I/O Expander, 16 Isolated DC InputS (10-32VDC)
ICM-HDIO-03P: High Density I/O Expander, 8 Isolated DC Inputs, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-04P: High Density I/O Expander, 8 Isolated DC InputS (10-32VDC)
ICM-HDIO-05P: High Density I/O Expander, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-06P: High Density I/O Expander, 16 Commoned DC Inputs, 16 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-07P: High Density I/O Expander, 16 Commoned DC Inputs(10-32VDC)
ICM-HDIO-08P: High Density I/O Expander, 8 Commoned DC Inputs, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-09P: High Density I/O Expander, 8 Commoned DC Inputs, (10-32VDC)
ICM-HDIO-10P: High Density I/O Expander, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-11P: High Density I/O Expander, 8 Commoned AC Inputs, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-12P: High Density I/O Expander, 8 Commoned AC Inputs(115VAC)
ICM-HDIO-13P: High Density I/O Expander, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-14P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-15P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC)
ICM-HDIO-16P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-17P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-19P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-20P: High Density I/O Expander, 8 Opto-22 Module Slots
ICM-HDIO-22P: High Density I/O Expander, 8 Commoned AC Inputs (115VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-23P: High Density I/O Expander, 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-24P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-25P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (1 FORM C) (relays not included)
138-106865: USB to RS232 Converter
126-102860: NULL Modem RS232 Communications cable, DB9F to DB9F
PIMS-CA-6: Power cable assembly, 3FT
109-101153: 115VAC Primary, 10VAC Secondary transformer for input power
ICM-HDPS-01: High Density Auxiliary Power Supply
ICM-HDCA-01: I/O Cable set, HDIO Port to 1 High Density I/O Expander (HDIO)
ICM-HDCA-02: I/O Cable set, HDIO Port to 2 High Density I/O Expanders (HDIO)
ICM-HDCA-03: I/O Cable set, HDIO Port to 3 High Density I/O Expanders (HDIO)
ICM-HDCA-04: I/O Cable set, HDIO Port to 4 High Density I/O Expanders (HDIO)
ICM-HDCA-05: I/O Cable set, HDIO Port to 5 High Density I/O Expanders (HDIO)
ICM-HDCA-06: I/O Cable set, HDIO Port to 6 High Density I/O Expanders (HDIO)
ICM-HDCA-07: I/O Cable set, HDIO Port to 7 High Density I/O Expanders (HDIO)
PIMS-CA-PWM: PCS PWM Ribbon Breakout Cable for PWM enabled models

PCS-200 ▼		2		2

Price: $238

10VAC or 10-30VDC Power
Din Rail Mount
Digital I/O using High Density I/O (HDIO) Expanders (128 In / 128 Out Max)
2 Counter Inputs (100KHz), 1 Graycode SSI Port

Accessories

Click on a model to download the PDF.

ICM-HDIO-01P: High Density I/O Expander, 16 Isolated DC Inputs, 16 Isolated DC Outputs (10-32VDC)
ICM-HDIO-02P: High Density I/O Expander, 16 Isolated DC InputS (10-32VDC)
ICM-HDIO-03P: High Density I/O Expander, 8 Isolated DC Inputs, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-04P: High Density I/O Expander, 8 Isolated DC InputS (10-32VDC)
ICM-HDIO-05P: High Density I/O Expander, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-06P: High Density I/O Expander, 16 Commoned DC Inputs, 16 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-07P: High Density I/O Expander, 16 Commoned DC Inputs(10-32VDC)
ICM-HDIO-08P: High Density I/O Expander, 8 Commoned DC Inputs, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-09P: High Density I/O Expander, 8 Commoned DC Inputs, (10-32VDC)
ICM-HDIO-10P: High Density I/O Expander, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-11P: High Density I/O Expander, 8 Commoned AC Inputs, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-12P: High Density I/O Expander, 8 Commoned AC Inputs(115VAC)
ICM-HDIO-13P: High Density I/O Expander, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-14P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-15P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC)
ICM-HDIO-16P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-17P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-19P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-20P: High Density I/O Expander, 8 Opto-22 Module Slots
ICM-HDIO-22P: High Density I/O Expander, 8 Commoned AC Inputs (115VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-23P: High Density I/O Expander, 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-24P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-25P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (1 FORM C) (relays not included)
138-106865: USB to RS232 Converter
126-102860: NULL Modem RS232 Communications cable, DB9F to DB9F
PIMS-CA-6: Power cable assembly, 3FT
109-101153: 115VAC Primary, 10VAC Secondary transformer for input power
ICM-HDPS-01: High Density Auxiliary Power Supply
ICM-HDCA-01: I/O Cable set, HDIO Port to 1 High Density I/O Expander (HDIO)
ICM-HDCA-02: I/O Cable set, HDIO Port to 2 High Density I/O Expanders (HDIO)
ICM-HDCA-03: I/O Cable set, HDIO Port to 3 High Density I/O Expanders (HDIO)
ICM-HDCA-04: I/O Cable set, HDIO Port to 4 High Density I/O Expanders (HDIO)
ICM-HDCA-05: I/O Cable set, HDIO Port to 5 High Density I/O Expanders (HDIO)
ICM-HDCA-06: I/O Cable set, HDIO Port to 6 High Density I/O Expanders (HDIO)
ICM-HDCA-07: I/O Cable set, HDIO Port to 7 High Density I/O Expanders (HDIO)

PCS-201 ▼		2	6/4	2

Price: $389

10VAC or 10-30VDC Power
Din Rail Mount
Digital I/O using High Density I/O (HDIO) Expanders
2 Counter Inputs (100KHz), 1 Graycode SSI Port
6 Analog Inputs: 0-5VDC, 10 bit
4 Analog Outputs (8 bit) or 2 Analog Outputs (16 bit): 0-5VDC
2 PWM Outputs, Open-Collector, 8 bit

Accessories

Click on a model to download the PDF.

ICM-HDIO-01P: High Density I/O Expander, 16 Isolated DC Inputs, 16 Isolated DC Outputs (10-32VDC)
ICM-HDIO-02P: High Density I/O Expander, 16 Isolated DC InputS (10-32VDC)
ICM-HDIO-03P: High Density I/O Expander, 8 Isolated DC Inputs, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-04P: High Density I/O Expander, 8 Isolated DC InputS (10-32VDC)
ICM-HDIO-05P: High Density I/O Expander, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-06P: High Density I/O Expander, 16 Commoned DC Inputs, 16 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-07P: High Density I/O Expander, 16 Commoned DC Inputs(10-32VDC)
ICM-HDIO-08P: High Density I/O Expander, 8 Commoned DC Inputs, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-09P: High Density I/O Expander, 8 Commoned DC Inputs, (10-32VDC)
ICM-HDIO-10P: High Density I/O Expander, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-11P: High Density I/O Expander, 8 Commoned AC Inputs, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-12P: High Density I/O Expander, 8 Commoned AC Inputs(115VAC)
ICM-HDIO-13P: High Density I/O Expander, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-14P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-15P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC)
ICM-HDIO-16P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-17P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-19P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-20P: High Density I/O Expander, 8 Opto-22 Module Slots
ICM-HDIO-22P: High Density I/O Expander, 8 Commoned AC Inputs (115VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-23P: High Density I/O Expander, 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-24P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-25P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (1 FORM C) (relays not included)
138-106865: USB to RS232 Converter
126-102860: NULL Modem RS232 Communications cable, DB9F to DB9F
PIMS-CA-6: Power cable assembly, 3FT
109-101153: 115VAC Primary, 10VAC Secondary transformer for input power
ICM-HDPS-01: High Density Auxiliary Power Supply
ICM-HDCA-01: I/O Cable set, HDIO Port to 1 High Density I/O Expander (HDIO)
ICM-HDCA-02: I/O Cable set, HDIO Port to 2 High Density I/O Expanders (HDIO)
ICM-HDCA-03: I/O Cable set, HDIO Port to 3 High Density I/O Expanders (HDIO)
ICM-HDCA-04: I/O Cable set, HDIO Port to 4 High Density I/O Expanders (HDIO)
ICM-HDCA-05: I/O Cable set, HDIO Port to 5 High Density I/O Expanders (HDIO)
ICM-HDCA-06: I/O Cable set, HDIO Port to 6 High Density I/O Expanders (HDIO)
ICM-HDCA-07: I/O Cable set, HDIO Port to 7 High Density I/O Expanders (HDIO)
PIMS-CA-PWM: PCS PWM Ribbon Breakout Cable for PWM enabled models

PCS-202 ▼		2	6/4	2

Price: $398

10VAC or 10-30VDC Power
Din Rail Mount
Digital I/O using High Density I/O (HDIO) Expanders (128 In / 128 Out Max)
2 Counter Inputs (100KHz), 1 Graycode SSI Port
6 Analog Inputs: 0-20mADC, 10 bit
4 Analog Outputs (8 bit) or 2 Analog Outputs (16 bit): 0-20mA
2 PWM Outputs, Open-Collector, 8 bit

Accessories

Click on a model to download the PDF.

ICM-HDIO-01P: High Density I/O Expander, 16 Isolated DC Inputs, 16 Isolated DC Outputs (10-32VDC)
ICM-HDIO-02P: High Density I/O Expander, 16 Isolated DC InputS (10-32VDC)
ICM-HDIO-03P: High Density I/O Expander, 8 Isolated DC Inputs, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-04P: High Density I/O Expander, 8 Isolated DC InputS (10-32VDC)
ICM-HDIO-05P: High Density I/O Expander, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-06P: High Density I/O Expander, 16 Commoned DC Inputs, 16 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-07P: High Density I/O Expander, 16 Commoned DC Inputs(10-32VDC)
ICM-HDIO-08P: High Density I/O Expander, 8 Commoned DC Inputs, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-09P: High Density I/O Expander, 8 Commoned DC Inputs, (10-32VDC)
ICM-HDIO-10P: High Density I/O Expander, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-11P: High Density I/O Expander, 8 Commoned AC Inputs, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-12P: High Density I/O Expander, 8 Commoned AC Inputs(115VAC)
ICM-HDIO-13P: High Density I/O Expander, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-14P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-15P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC)
ICM-HDIO-16P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-17P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-19P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-20P: High Density I/O Expander, 8 Opto-22 Module Slots
ICM-HDIO-22P: High Density I/O Expander, 8 Commoned AC Inputs (115VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-23P: High Density I/O Expander, 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-24P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-25P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (1 FORM C) (relays not included)
138-106865: USB to RS232 Converter
126-102860: NULL Modem RS232 Communications cable, DB9F to DB9F
PIMS-CA-6: Power cable assembly, 3FT
109-101153: 115VAC Primary, 10VAC Secondary transformer for input power
ICM-HDPS-01: High Density Auxiliary Power Supply
ICM-HDCA-01: I/O Cable set, HDIO Port to 1 High Density I/O Expander (HDIO)
ICM-HDCA-02: I/O Cable set, HDIO Port to 2 High Density I/O Expanders (HDIO)
ICM-HDCA-03: I/O Cable set, HDIO Port to 3 High Density I/O Expanders (HDIO)
ICM-HDCA-04: I/O Cable set, HDIO Port to 4 High Density I/O Expanders (HDIO)
ICM-HDCA-05: I/O Cable set, HDIO Port to 5 High Density I/O Expanders (HDIO)
ICM-HDCA-06: I/O Cable set, HDIO Port to 6 High Density I/O Expanders (HDIO)
ICM-HDCA-07: I/O Cable set, HDIO Port to 7 High Density I/O Expanders (HDIO)
PIMS-CA-PWM: PCS PWM Ribbon Breakout Cable for PWM enabled models

PCS-210 ▼		2		2	1

Price: $294

10VAC or 10-30VDC Power
Din Rail Mount
Digital I/O using High Density I/O (HDIO) Expanders
2 Counter Inputs (100KHz), 1 Graycode SSI Port
1 – RS232 Port (Modbus Slave)

Accessories

Click on a model to download the PDF.

ICM-HDIO-01P: High Density I/O Expander, 16 Isolated DC Inputs, 16 Isolated DC Outputs (10-32VDC)
ICM-HDIO-02P: High Density I/O Expander, 16 Isolated DC InputS (10-32VDC)
ICM-HDIO-03P: High Density I/O Expander, 8 Isolated DC Inputs, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-04P: High Density I/O Expander, 8 Isolated DC InputS (10-32VDC)
ICM-HDIO-05P: High Density I/O Expander, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-06P: High Density I/O Expander, 16 Commoned DC Inputs, 16 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-07P: High Density I/O Expander, 16 Commoned DC Inputs(10-32VDC)
ICM-HDIO-08P: High Density I/O Expander, 8 Commoned DC Inputs, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-09P: High Density I/O Expander, 8 Commoned DC Inputs, (10-32VDC)
ICM-HDIO-10P: High Density I/O Expander, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-11P: High Density I/O Expander, 8 Commoned AC Inputs, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-12P: High Density I/O Expander, 8 Commoned AC Inputs(115VAC)
ICM-HDIO-13P: High Density I/O Expander, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-14P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-15P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC)
ICM-HDIO-16P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-17P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-19P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-20P: High Density I/O Expander, 8 Opto-22 Module Slots
ICM-HDIO-22P: High Density I/O Expander, 8 Commoned AC Inputs (115VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-23P: High Density I/O Expander, 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-24P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-25P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (1 FORM C) (relays not included)
138-106865: USB to RS232 Converter
126-102860: NULL Modem RS232 Communications cable, DB9F to DB9F
PIMS-CA-6: Power cable assembly, 3FT
109-101153: 115VAC Primary, 10VAC Secondary transformer for input power
ICM-HDPS-01: High Density Auxiliary Power Supply
ICM-HDCA-01: I/O Cable set, HDIO Port to 1 High Density I/O Expander (HDIO)
ICM-HDCA-02: I/O Cable set, HDIO Port to 2 High Density I/O Expanders (HDIO)
ICM-HDCA-03: I/O Cable set, HDIO Port to 3 High Density I/O Expanders (HDIO)
ICM-HDCA-04: I/O Cable set, HDIO Port to 4 High Density I/O Expanders (HDIO)
ICM-HDCA-05: I/O Cable set, HDIO Port to 5 High Density I/O Expanders (HDIO)
ICM-HDCA-06: I/O Cable set, HDIO Port to 6 High Density I/O Expanders (HDIO)
ICM-HDCA-07: I/O Cable set, HDIO Port to 7 High Density I/O Expanders (HDIO)

PCS-211 ▼		2	6/4	2	1

Price: $446

10VAC or 10-30VDC Power
Din Rail Mount
Digital I/O using High Density I/O (HDIO) Expanders (128 In / 128 Out Max)
2 Counter Inputs (100KHz), 1 Graycode SSI Port
6 Analog Inputs: 0-5VDC, 10 bit
4 Analog Outputs (8 bit) or 2 Analog Outputs (16 bit): 0-5VDC
2 PWM Outputs, Open-Collector, 8 bit
1 – RS232 Port (Modbus Slave)

Accessories

Click on a model to download the PDF.

ICM-HDIO-01P: High Density I/O Expander, 16 Isolated DC Inputs, 16 Isolated DC Outputs (10-32VDC)
ICM-HDIO-02P: High Density I/O Expander, 16 Isolated DC InputS (10-32VDC)
ICM-HDIO-03P: High Density I/O Expander, 8 Isolated DC Inputs, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-04P: High Density I/O Expander, 8 Isolated DC InputS (10-32VDC)
ICM-HDIO-05P: High Density I/O Expander, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-06P: High Density I/O Expander, 16 Commoned DC Inputs, 16 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-07P: High Density I/O Expander, 16 Commoned DC Inputs(10-32VDC)
ICM-HDIO-08P: High Density I/O Expander, 8 Commoned DC Inputs, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-09P: High Density I/O Expander, 8 Commoned DC Inputs, (10-32VDC)
ICM-HDIO-10P: High Density I/O Expander, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-11P: High Density I/O Expander, 8 Commoned AC Inputs, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-12P: High Density I/O Expander, 8 Commoned AC Inputs(115VAC)
ICM-HDIO-13P: High Density I/O Expander, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-14P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-15P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC)
ICM-HDIO-16P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-17P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-19P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-20P: High Density I/O Expander, 8 Opto-22 Module Slots
ICM-HDIO-22P: High Density I/O Expander, 8 Commoned AC Inputs (115VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-23P: High Density I/O Expander, 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-24P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-25P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (1 FORM C) (relays not included)
138-106865: USB to RS232 Converter
126-102860: NULL Modem RS232 Communications cable, DB9F to DB9F
PIMS-CA-6: Power cable assembly, 3FT
109-101153: 115VAC Primary, 10VAC Secondary transformer for input power
ICM-HDPS-01: High Density Auxiliary Power Supply
ICM-HDCA-01: I/O Cable set, HDIO Port to 1 High Density I/O Expander (HDIO)
ICM-HDCA-02: I/O Cable set, HDIO Port to 2 High Density I/O Expanders (HDIO)
ICM-HDCA-03: I/O Cable set, HDIO Port to 3 High Density I/O Expanders (HDIO)
ICM-HDCA-04: I/O Cable set, HDIO Port to 4 High Density I/O Expanders (HDIO)
ICM-HDCA-05: I/O Cable set, HDIO Port to 5 High Density I/O Expanders (HDIO)
ICM-HDCA-06: I/O Cable set, HDIO Port to 6 High Density I/O Expanders (HDIO)
ICM-HDCA-07: I/O Cable set, HDIO Port to 7 High Density I/O Expanders (HDIO)
PIMS-CA-PWM: PCS PWM Ribbon Breakout Cable for PWM enabled models

PCS-212 ▼		2	6/4	2	1

Price: $455

10VAC or 10-30VDC Power
Din Rail Mount
Digital I/O using High Density I/O (HDIO) Expanders
2 Counter Inputs (100KHz), 1 Graycode SSI Port
6 Analog Inputs: 0-20mADC, 10 bit
4 Analog Outputs (8 bit) or 2 Analog Outputs (16 bit): 0-20mA
2 PWM Outputs, Open-Collector, 8 bit
1 – RS232 Port (Modbus Slave)

Accessories

Click on a model to download the PDF.

ICM-HDIO-01P: High Density I/O Expander, 16 Isolated DC Inputs, 16 Isolated DC Outputs (10-32VDC)
ICM-HDIO-02P: High Density I/O Expander, 16 Isolated DC InputS (10-32VDC)
ICM-HDIO-03P: High Density I/O Expander, 8 Isolated DC Inputs, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-04P: High Density I/O Expander, 8 Isolated DC InputS (10-32VDC)
ICM-HDIO-05P: High Density I/O Expander, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-06P: High Density I/O Expander, 16 Commoned DC Inputs, 16 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-07P: High Density I/O Expander, 16 Commoned DC Inputs(10-32VDC)
ICM-HDIO-08P: High Density I/O Expander, 8 Commoned DC Inputs, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-09P: High Density I/O Expander, 8 Commoned DC Inputs, (10-32VDC)
ICM-HDIO-10P: High Density I/O Expander, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-11P: High Density I/O Expander, 8 Commoned AC Inputs, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-12P: High Density I/O Expander, 8 Commoned AC Inputs(115VAC)
ICM-HDIO-13P: High Density I/O Expander, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-14P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-15P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC)
ICM-HDIO-16P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-17P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-19P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-20P: High Density I/O Expander, 8 Opto-22 Module Slots
ICM-HDIO-22P: High Density I/O Expander, 8 Commoned AC Inputs (115VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-23P: High Density I/O Expander, 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-24P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-25P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (1 FORM C) (relays not included)
138-106865: USB to RS232 Converter
126-102860: NULL Modem RS232 Communications cable, DB9F to DB9F
PIMS-CA-6: Power cable assembly, 3FT
109-101153: 115VAC Primary, 10VAC Secondary transformer for input power
ICM-HDPS-01: High Density Auxiliary Power Supply
ICM-HDCA-01: I/O Cable set, HDIO Port to 1 High Density I/O Expander (HDIO)
ICM-HDCA-02: I/O Cable set, HDIO Port to 2 High Density I/O Expanders (HDIO)
ICM-HDCA-03: I/O Cable set, HDIO Port to 3 High Density I/O Expanders (HDIO)
ICM-HDCA-04: I/O Cable set, HDIO Port to 4 High Density I/O Expanders (HDIO)
ICM-HDCA-05: I/O Cable set, HDIO Port to 5 High Density I/O Expanders (HDIO)
ICM-HDCA-06: I/O Cable set, HDIO Port to 6 High Density I/O Expanders (HDIO)
ICM-HDCA-07: I/O Cable set, HDIO Port to 7 High Density I/O Expanders (HDIO)
PIMS-CA-PWM: PCS PWM Ribbon Breakout Cable for PWM enabled models

PCS-220 ▼		2		2	1

Price: $300

10VAC or 10-30VDC Power
Din Rail Mount
Digital I/O using High Density I/O (HDIO) Expanders (128 In / 128 Out Max)
2 Counter Inputs (100KHz), 1 Graycode SSI Port
1 – RS422 Port (Modbus Slave)

Accessories

Click on a model to download the PDF.

ICM-HDIO-01P: High Density I/O Expander, 16 Isolated DC Inputs, 16 Isolated DC Outputs (10-32VDC)
ICM-HDIO-02P: High Density I/O Expander, 16 Isolated DC InputS (10-32VDC)
ICM-HDIO-03P: High Density I/O Expander, 8 Isolated DC Inputs, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-04P: High Density I/O Expander, 8 Isolated DC InputS (10-32VDC)
ICM-HDIO-05P: High Density I/O Expander, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-06P: High Density I/O Expander, 16 Commoned DC Inputs, 16 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-07P: High Density I/O Expander, 16 Commoned DC Inputs(10-32VDC)
ICM-HDIO-08P: High Density I/O Expander, 8 Commoned DC Inputs, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-09P: High Density I/O Expander, 8 Commoned DC Inputs, (10-32VDC)
ICM-HDIO-10P: High Density I/O Expander, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-11P: High Density I/O Expander, 8 Commoned AC Inputs, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-12P: High Density I/O Expander, 8 Commoned AC Inputs(115VAC)
ICM-HDIO-13P: High Density I/O Expander, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-14P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-15P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC)
ICM-HDIO-16P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-17P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-19P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-20P: High Density I/O Expander, 8 Opto-22 Module Slots
ICM-HDIO-22P: High Density I/O Expander, 8 Commoned AC Inputs (115VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-23P: High Density I/O Expander, 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-24P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-25P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (1 FORM C) (relays not included)
138-106865: USB to RS232 Converter
126-102860: NULL Modem RS232 Communications cable, DB9F to DB9F
PIMS-CA-6: Power cable assembly, 3FT
109-101153: 115VAC Primary, 10VAC Secondary transformer for input power
ICM-HDPS-01: High Density Auxiliary Power Supply
ICM-HDCA-01: I/O Cable set, HDIO Port to 1 High Density I/O Expander (HDIO)
ICM-HDCA-02: I/O Cable set, HDIO Port to 2 High Density I/O Expanders (HDIO)
ICM-HDCA-03: I/O Cable set, HDIO Port to 3 High Density I/O Expanders (HDIO)
ICM-HDCA-04: I/O Cable set, HDIO Port to 4 High Density I/O Expanders (HDIO)
ICM-HDCA-05: I/O Cable set, HDIO Port to 5 High Density I/O Expanders (HDIO)
ICM-HDCA-06: I/O Cable set, HDIO Port to 6 High Density I/O Expanders (HDIO)
ICM-HDCA-07: I/O Cable set, HDIO Port to 7 High Density I/O Expanders (HDIO)

PCS-221 ▼		2	6/4	2	1

Price: $451

10VAC or 10-30VDC Power
Din Rail Mount
Digital I/O using High Density I/O (HDIO) Expanders (128 In / 128 Out Max)
2 Counter Inputs (100KHz), 1 Graycode SSI Port
6 Analog Inputs: 0-5VDC, 10 bit
4 Analog Outputs (8 bit) or 2 Analog Outputs (16 bit): 0-5VDC
2 PWM Outputs, Open-Collector, 8 bit
1 – RS422 Port (Modbus Slave)

Accessories

Click on a model to download the PDF.

ICM-HDIO-01P: High Density I/O Expander, 16 Isolated DC Inputs, 16 Isolated DC Outputs (10-32VDC)
ICM-HDIO-02P: High Density I/O Expander, 16 Isolated DC InputS (10-32VDC)
ICM-HDIO-03P: High Density I/O Expander, 8 Isolated DC Inputs, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-04P: High Density I/O Expander, 8 Isolated DC InputS (10-32VDC)
ICM-HDIO-05P: High Density I/O Expander, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-06P: High Density I/O Expander, 16 Commoned DC Inputs, 16 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-07P: High Density I/O Expander, 16 Commoned DC Inputs(10-32VDC)
ICM-HDIO-08P: High Density I/O Expander, 8 Commoned DC Inputs, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-09P: High Density I/O Expander, 8 Commoned DC Inputs, (10-32VDC)
ICM-HDIO-10P: High Density I/O Expander, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-11P: High Density I/O Expander, 8 Commoned AC Inputs, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-12P: High Density I/O Expander, 8 Commoned AC Inputs(115VAC)
ICM-HDIO-13P: High Density I/O Expander, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-14P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-15P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC)
ICM-HDIO-16P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-17P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-19P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-20P: High Density I/O Expander, 8 Opto-22 Module Slots
ICM-HDIO-22P: High Density I/O Expander, 8 Commoned AC Inputs (115VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-23P: High Density I/O Expander, 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-24P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-25P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (1 FORM C) (relays not included)
138-106865: USB to RS232 Converter
126-102860: NULL Modem RS232 Communications cable, DB9F to DB9F
PIMS-CA-6: Power cable assembly, 3FT
109-101153: 115VAC Primary, 10VAC Secondary transformer for input power
ICM-HDPS-01: High Density Auxiliary Power Supply
ICM-HDCA-01: I/O Cable set, HDIO Port to 1 High Density I/O Expander (HDIO)
ICM-HDCA-02: I/O Cable set, HDIO Port to 2 High Density I/O Expanders (HDIO)
ICM-HDCA-03: I/O Cable set, HDIO Port to 3 High Density I/O Expanders (HDIO)
ICM-HDCA-04: I/O Cable set, HDIO Port to 4 High Density I/O Expanders (HDIO)
ICM-HDCA-05: I/O Cable set, HDIO Port to 5 High Density I/O Expanders (HDIO)
ICM-HDCA-06: I/O Cable set, HDIO Port to 6 High Density I/O Expanders (HDIO)
ICM-HDCA-07: I/O Cable set, HDIO Port to 7 High Density I/O Expanders (HDIO)
PIMS-CA-PWM: PCS PWM Ribbon Breakout Cable for PWM enabled models

PCS-222 ▼		2	6/4	2	1

Price: $460

10VAC or 10-30VDC Power
Din Rail Mount
Digital I/O using High Density I/O (HDIO) Expanders (128 In / 128 Out Max)
2 Counter Inputs (100KHz), 1 Graycode SSI Port
6 Analog Inputs: 0-20mADC, 10 bit
4 Analog Outputs (8 bit) or 2 Analog Outputs (16 bit): 0-20mA
2 PWM Outputs, Open-Collector, 8 bit
1 – RS422 Port (Modbus Slave)

Accessories

Click on a model to download the PDF.

ICM-HDIO-01P: High Density I/O Expander, 16 Isolated DC Inputs, 16 Isolated DC Outputs (10-32VDC)
ICM-HDIO-02P: High Density I/O Expander, 16 Isolated DC InputS (10-32VDC)
ICM-HDIO-03P: High Density I/O Expander, 8 Isolated DC Inputs, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-04P: High Density I/O Expander, 8 Isolated DC InputS (10-32VDC)
ICM-HDIO-05P: High Density I/O Expander, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-06P: High Density I/O Expander, 16 Commoned DC Inputs, 16 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-07P: High Density I/O Expander, 16 Commoned DC Inputs(10-32VDC)
ICM-HDIO-08P: High Density I/O Expander, 8 Commoned DC Inputs, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-09P: High Density I/O Expander, 8 Commoned DC Inputs, (10-32VDC)
ICM-HDIO-10P: High Density I/O Expander, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-11P: High Density I/O Expander, 8 Commoned AC Inputs, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-12P: High Density I/O Expander, 8 Commoned AC Inputs(115VAC)
ICM-HDIO-13P: High Density I/O Expander, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-14P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-15P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC)
ICM-HDIO-16P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-17P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-19P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-20P: High Density I/O Expander, 8 Opto-22 Module Slots
ICM-HDIO-22P: High Density I/O Expander, 8 Commoned AC Inputs (115VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-23P: High Density I/O Expander, 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-24P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-25P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (1 FORM C) (relays not included)
138-106865: USB to RS232 Converter
126-102860: NULL Modem RS232 Communications cable, DB9F to DB9F
PIMS-CA-6: Power cable assembly, 3FT
109-101153: 115VAC Primary, 10VAC Secondary transformer for input power
ICM-HDPS-01: High Density Auxiliary Power Supply
ICM-HDCA-01: I/O Cable set, HDIO Port to 1 High Density I/O Expander (HDIO)
ICM-HDCA-02: I/O Cable set, HDIO Port to 2 High Density I/O Expanders (HDIO)
ICM-HDCA-03: I/O Cable set, HDIO Port to 3 High Density I/O Expanders (HDIO)
ICM-HDCA-04: I/O Cable set, HDIO Port to 4 High Density I/O Expanders (HDIO)
ICM-HDCA-05: I/O Cable set, HDIO Port to 5 High Density I/O Expanders (HDIO)
ICM-HDCA-06: I/O Cable set, HDIO Port to 6 High Density I/O Expanders (HDIO)
ICM-HDCA-07: I/O Cable set, HDIO Port to 7 High Density I/O Expanders (HDIO)
PIMS-CA-PWM: PCS PWM Ribbon Breakout Cable for PWM enabled models

PCS-230 ▼		2		2	1

Price: $294

10VAC or 10-30VDC Power
Din Rail Mount
Digital I/O using High Density I/O (HDIO) Expanders (128 In / 128 Out Max)
2 Counter Inputs (100KHz), 1 Graycode SSI Port
1 – RS485 Port (Modbus Slave)

Accessories

Click on a model to download the PDF.

ICM-HDIO-01P: High Density I/O Expander, 16 Isolated DC Inputs, 16 Isolated DC Outputs (10-32VDC)
ICM-HDIO-02P: High Density I/O Expander, 16 Isolated DC InputS (10-32VDC)
ICM-HDIO-03P: High Density I/O Expander, 8 Isolated DC Inputs, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-04P: High Density I/O Expander, 8 Isolated DC InputS (10-32VDC)
ICM-HDIO-05P: High Density I/O Expander, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-06P: High Density I/O Expander, 16 Commoned DC Inputs, 16 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-07P: High Density I/O Expander, 16 Commoned DC Inputs(10-32VDC)
ICM-HDIO-08P: High Density I/O Expander, 8 Commoned DC Inputs, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-09P: High Density I/O Expander, 8 Commoned DC Inputs, (10-32VDC)
ICM-HDIO-10P: High Density I/O Expander, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-11P: High Density I/O Expander, 8 Commoned AC Inputs, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-12P: High Density I/O Expander, 8 Commoned AC Inputs(115VAC)
ICM-HDIO-13P: High Density I/O Expander, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-14P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-15P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC)
ICM-HDIO-16P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-17P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-19P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-20P: High Density I/O Expander, 8 Opto-22 Module Slots
ICM-HDIO-22P: High Density I/O Expander, 8 Commoned AC Inputs (115VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-23P: High Density I/O Expander, 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-24P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-25P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (1 FORM C) (relays not included)
138-106865: USB to RS232 Converter
126-102860: NULL Modem RS232 Communications cable, DB9F to DB9F
PIMS-CA-6: Power cable assembly, 3FT
109-101153: 115VAC Primary, 10VAC Secondary transformer for input power
ICM-HDPS-01: High Density Auxiliary Power Supply
ICM-HDCA-01: I/O Cable set, HDIO Port to 1 High Density I/O Expander (HDIO)
ICM-HDCA-02: I/O Cable set, HDIO Port to 2 High Density I/O Expanders (HDIO)
ICM-HDCA-03: I/O Cable set, HDIO Port to 3 High Density I/O Expanders (HDIO)
ICM-HDCA-04: I/O Cable set, HDIO Port to 4 High Density I/O Expanders (HDIO)
ICM-HDCA-05: I/O Cable set, HDIO Port to 5 High Density I/O Expanders (HDIO)
ICM-HDCA-06: I/O Cable set, HDIO Port to 6 High Density I/O Expanders (HDIO)
ICM-HDCA-07: I/O Cable set, HDIO Port to 7 High Density I/O Expanders (HDIO)

PCS-231 ▼		2	6/4	2	1

Price: $446

10VAC or 10-30VDC Power
Din Rail Mount
Digital I/O using High Density I/O (HDIO) Expanders (128 In / 128 Out Max)
2 Counter Inputs (100KHz), 1 Graycode SSI Port
6 Analog Inputs: 0-5VDC, 10 bit
4 Analog Outputs (8 bit) or 2 Analog Outputs (16 bit): 0-5VDC
2 PWM Outputs, Open-Collector, 8 bit
1 – RS485 Port (Modbus Slave)

Accessories

Click on a model to download the PDF.

ICM-HDIO-01P: High Density I/O Expander, 16 Isolated DC Inputs, 16 Isolated DC Outputs (10-32VDC)
ICM-HDIO-02P: High Density I/O Expander, 16 Isolated DC InputS (10-32VDC)
ICM-HDIO-03P: High Density I/O Expander, 8 Isolated DC Inputs, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-04P: High Density I/O Expander, 8 Isolated DC InputS (10-32VDC)
ICM-HDIO-05P: High Density I/O Expander, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-06P: High Density I/O Expander, 16 Commoned DC Inputs, 16 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-07P: High Density I/O Expander, 16 Commoned DC Inputs(10-32VDC)
ICM-HDIO-08P: High Density I/O Expander, 8 Commoned DC Inputs, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-09P: High Density I/O Expander, 8 Commoned DC Inputs, (10-32VDC)
ICM-HDIO-10P: High Density I/O Expander, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-11P: High Density I/O Expander, 8 Commoned AC Inputs, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-12P: High Density I/O Expander, 8 Commoned AC Inputs(115VAC)
ICM-HDIO-13P: High Density I/O Expander, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-14P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-15P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC)
ICM-HDIO-16P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-17P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-19P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-20P: High Density I/O Expander, 8 Opto-22 Module Slots
ICM-HDIO-22P: High Density I/O Expander, 8 Commoned AC Inputs (115VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-23P: High Density I/O Expander, 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-24P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-25P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (1 FORM C) (relays not included)
138-106865: USB to RS232 Converter
126-102860: NULL Modem RS232 Communications cable, DB9F to DB9F
PIMS-CA-6: Power cable assembly, 3FT
109-101153: 115VAC Primary, 10VAC Secondary transformer for input power
ICM-HDPS-01: High Density Auxiliary Power Supply
ICM-HDCA-01: I/O Cable set, HDIO Port to 1 High Density I/O Expander (HDIO)
ICM-HDCA-02: I/O Cable set, HDIO Port to 2 High Density I/O Expanders (HDIO)
ICM-HDCA-03: I/O Cable set, HDIO Port to 3 High Density I/O Expanders (HDIO)
ICM-HDCA-04: I/O Cable set, HDIO Port to 4 High Density I/O Expanders (HDIO)
ICM-HDCA-05: I/O Cable set, HDIO Port to 5 High Density I/O Expanders (HDIO)
ICM-HDCA-06: I/O Cable set, HDIO Port to 6 High Density I/O Expanders (HDIO)
ICM-HDCA-07: I/O Cable set, HDIO Port to 7 High Density I/O Expanders (HDIO)
PIMS-CA-PWM: PCS PWM Ribbon Breakout Cable for PWM enabled models

PCS-232 ▼		2	6/4	2	1

Price: $455

10VAC or 10-30VDC Power
Din Rail Mount
Digital I/O using High Density I/O (HDIO) Expanders (128 In / 128 Out Max)
2 Counter Inputs (100KHz), 1 Graycode SSI Port
6 Analog Inputs: 0-20mADC, 10 bit
4 Analog Outputs (8 bit) or 2 Analog Outputs (16 bit): 0-20mA
2 PWM Outputs, Open-Collector, 8 bit
1 – RS485 Port (Modbus Slave)

Accessories

Click on a model to download the PDF.

ICM-HDIO-01P: High Density I/O Expander, 16 Isolated DC Inputs, 16 Isolated DC Outputs (10-32VDC)
ICM-HDIO-02P: High Density I/O Expander, 16 Isolated DC InputS (10-32VDC)
ICM-HDIO-03P: High Density I/O Expander, 8 Isolated DC Inputs, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-04P: High Density I/O Expander, 8 Isolated DC InputS (10-32VDC)
ICM-HDIO-05P: High Density I/O Expander, 8 Isolated DC Outputs (10-32VDC)
ICM-HDIO-06P: High Density I/O Expander, 16 Commoned DC Inputs, 16 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-07P: High Density I/O Expander, 16 Commoned DC Inputs(10-32VDC)
ICM-HDIO-08P: High Density I/O Expander, 8 Commoned DC Inputs, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-09P: High Density I/O Expander, 8 Commoned DC Inputs, (10-32VDC)
ICM-HDIO-10P: High Density I/O Expander, 8 Commoned, Fused DC Outputs (10-32VDC)
ICM-HDIO-11P: High Density I/O Expander, 8 Commoned AC Inputs, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-12P: High Density I/O Expander, 8 Commoned AC Inputs(115VAC)
ICM-HDIO-13P: High Density I/O Expander, 8 Commoned, Fused AC Outputs (115VAC)
ICM-HDIO-14P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-15P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC)
ICM-HDIO-16P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Commoned, Fused AC Outputs (10-115VAC)
ICM-HDIO-17P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-19P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (N.O.) (relays not included)
ICM-HDIO-20P: High Density I/O Expander, 8 Opto-22 Module Slots
ICM-HDIO-22P: High Density I/O Expander, 8 Commoned AC Inputs (115VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-23P: High Density I/O Expander, 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-24P: High Density I/O Expander, 8 Commoned AC Inputs (24VAC), 8 Relay Output Socket (1 FORM C) (relays not included)
ICM-HDIO-25P: High Density I/O Expander, 8 Commoned DC Inputs (10-32VDC), 8 Relay Output Socket (1 FORM C) (relays not included)
138-106865: USB to RS232 Converter
126-102860: NULL Modem RS232 Communications cable, DB9F to DB9F
PIMS-CA-6: Power cable assembly, 3FT
109-101153: 115VAC Primary, 10VAC Secondary transformer for input power
ICM-HDPS-01: High Density Auxiliary Power Supply
ICM-HDCA-01: I/O Cable set, HDIO Port to 1 High Density I/O Expander (HDIO)
ICM-HDCA-02: I/O Cable set, HDIO Port to 2 High Density I/O Expanders (HDIO)
ICM-HDCA-03: I/O Cable set, HDIO Port to 3 High Density I/O Expanders (HDIO)
ICM-HDCA-04: I/O Cable set, HDIO Port to 4 High Density I/O Expanders (HDIO)
ICM-HDCA-05: I/O Cable set, HDIO Port to 5 High Density I/O Expanders (HDIO)
ICM-HDCA-06: I/O Cable set, HDIO Port to 6 High Density I/O Expanders (HDIO)
ICM-HDCA-07: I/O Cable set, HDIO Port to 7 High Density I/O Expanders (HDIO)
PIMS-CA-PWM: PCS PWM Ribbon Breakout Cable for PWM enabled models

Solves-It! Controllers & Application Modules

Designed with simple I/O applications in mind and when physical space is limited, the Solves-It! Controllers and Applications Modules deliver features like control, counting, timing and sensing. From a delay relay replacement to a full PLC, the Solves-It! gets the job done.

Click model to view downloads

MODEL	On board Digital Inputs / Outputs	Counter Inputs	Analog Inputs/Outputs	CAN Port(s)	Serial Port(s)	Programmable Display

SI-110 ▼	4/6	1	1

Price: $112

8-30VDC Power
12 Pin Octal (Requires Socket)
4 Digital I/O (either Input or Output), 2 Dedicated Digital Outputs (Sinking Inputs / Sourcing Outputs)
1 Counter Input (uses 1 Digital Input), 25KHz
1 Analog Input: 0-10VDC
2 Programmable Potentiometers
Download Manual V1
Download Manual V2

Accessories

SI-PGM: RS232 Programming Cable, DB9F to Barrel Jack
138-106865: USB to RS232 Converter
115-105328: Octal Socket for SI, Sub-plate, DIN rail mount

SI-200 ▼	4/4	1				X

Price: $152

8-30VDC Power
12 Pin Octal (Requires Socket)
4 Digital Inputs (Sourcing)
4 Digital Outputs (Sourcing)
1 Counter Input (uses 1 Digital Input), 25KHz
4 Digit Display with Programmable Push buttons
Real Time Clock
Download Manual V1
Download Manual V2

Accessories

SI-PGM: RS232 Programming Cable, DB9F to Barrel Jack
138-106865: USB to RS232 Converter
115-105328: Octal Socket for SI, Sub-plate, DIN rail mount

SI-APPMOD-2PUMPALTERNATE ▼						X

Price: $188

- 8-30VDC Power
- 12 Pin Octal (Requires Socket)
- SI-200 Based
- Controls / Alternates 2 Pumps (Outputs) to Level run time
- Download Manual V1
- Download Manual V2

Accessories

SI-PGM: RS232 Programming Cable, DB9F to Barrel Jack
138-106865: USB to RS232 Converter

SI-APPMOD-3PUMPALTERNATE ▼						X

Price: $188

8-30VDC Power
12 Pin Octal (Requires Socket)
SI-200 Based
Controls / Alternates 3 Pumps (Outputs) to Level run time
Download Manual V1
Download Manual V2

Accessories

SI-PGM: RS232 Programming Cable, DB9F to Barrel Jack
138-106865: USB to RS232 Converter

SI-APPMOD-HOURMETER ▼						X

Price: $188

8-30VDC Power
12 Pin Octal (Requires Socket)
SI-200 Based
Operates as an On-Power Hour Meter for run time.
Programmable Setpoints and Alarms
Download Manual V1
Download Manual V2

Accessories

SI-PGM: RS232 Programming Cable, DB9F to Barrel Jack
138-106865: USB to RS232 Converter

SI-APPMOD-MULTICOUNT ▼						X

Price: $188

8-30VDC Power
12 Pin Octal (Requires Socket)
SI-200 Based
3 Displayed Individual Counters (Inputs)
Indivdual Reset and Setpoints
Download Manual V1
Download Manual V2

Accessories

SI-PGM: RS232 Programming Cable, DB9F to Barrel Jack
138-106865: USB to RS232 Converter

SI-APPMOD-TACHOMTER ▼						X

Price: $188

8-30VDC Power
12 Pin Octal (Requires Socket)
SI-200 Based
Displayed RPM
Pulse Input (Sensor/Hall-effect), based on 60 tooth gear
Four programmable Setpoints with triggered Outputs
Download Manual V1
Download Manual V2

Accessories

SI-PGM: RS232 Programming Cable, DB9F to Barrel Jack
138-106865: USB to RS232 Converter

SI-APPMOD-TIMES4 ▼						X

Price: $188

8-30VDC Power
12 Pin Octal (Requires Socket)
SI-200 Based
4 Individual ON or OFF Delay Timers, 0.1 to 300 seconds
Display / Button Configurable Setpoints
Download Manual V1
Download Manual V2

Accessories

SI-PGM: RS232 Programming Cable, DB9F to Barrel Jack
138-106865: USB to RS232 Converter

Contact US
